LoRa Mine Communication Solution for Underground Mining

Reliable Long-Range Communication Without Expensive Infrastructure

Underground mining operations demand uninterrupted communication to ensure worker safety, equipment coordination, and production efficiency. However, conventional communication systems often struggle in underground environments where tunnels continuously expand, signal propagation is blocked by rock formations, and installing wired infrastructure is both expensive and time-consuming.



Kanglong's LoRa Mine Communication Solution is specifically designed to overcome these challenges. Using low-power LoRa technology combined with strategically deployed relay stations, vehicle-mounted radios, and handheld terminals, the system delivers stable voice communication throughout underground haulage tunnels without relying on cellular networks or complex wired installations.



Challenges in Underground Mine Communication

Many mining sites experience similar communication problems:

• No cellular network coverage underground.

• Wi-Fi infrastructure is costly to install and difficult to maintain.

• Traditional VHF/UHF radios suffer severe attenuation around tunnel bends.

• Fiber optic deployment requires frequent reconstruction as tunnels expand.

• Poor communication between surface operators and underground workers.

• Limited communication between haul trucks, supervisors, and maintenance teams.

• High operating costs due to complicated communication infrastructure.



For mines that continue extending deeper every year, communication systems must also be scalable and easy to relocate.



Project Background

This project is designed for an underground mine featuring:

• Approximately 6 km between the mine entrance and dumping area.

• Underground working depth of approximately 50–80 meters.

• Multiple curved haulage tunnels.

• Continuous movement of underground dump trucks.

• Multiple excavation and loading zones.



Because the mine uses a sloped access tunnel rather than a vertical shaft, heavy haul trucks can directly transport ore between underground production areas and the surface. This operating method also provides an ideal route for deploying LoRa relay nodes.

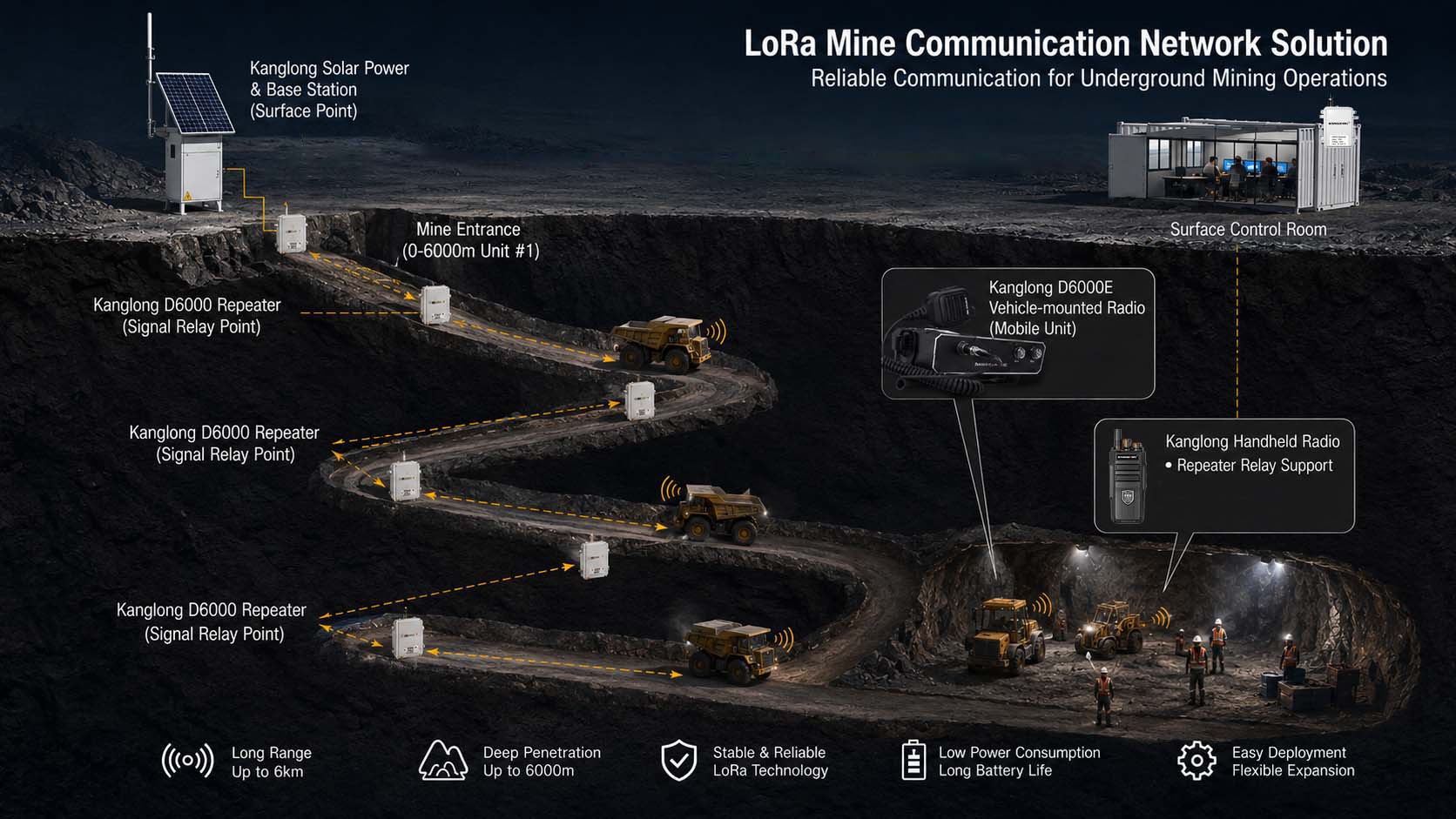

System Architecture

The complete communication system consists of five major components.

1. Surface Solar LoRa Base Station

Installed at the mine entrance, the solar-powered base station provides:

• 24/7 autonomous operation

• Long-distance wireless backhaul

• Connection with the surface control room

• Remote monitoring capability

Solar power eliminates the need for additional electrical infrastructure in remote mining locations.

2. Surface Control Room

The control center manages:

• Communication network monitoring

• Dispatcher communications

• Equipment coordination

• Emergency command

Operators maintain constant contact with underground supervisors through the LoRa network.

3. LoRa Relay Stations (D6000 Repeaters)

Instead of installing repeaters at equal intervals, relay locations are selected according to actual tunnel geometry.

Typical spacing ranges between:

• 90m

• 100m

• 120m

• 160m

• 180m



Repeaters are installed at:

• Tunnel intersections

• Sharp bends

• Blind corners

• Long straight sections

• Loading chambers



This deployment strategy minimizes signal loss caused by rock shielding while reducing the total number of relay units required.

Each repeater automatically forwards communication to the next relay, forming a reliable multi-hop network throughout the mine.

4. D6000E Vehicle-Mounted Radio

Unlike conventional mine communication systems where repeaters remain fixed, Kanglong integrates the D6000E Vehicle-Mounted Radio directly onto underground dump trucks.

The D6000E serves several important functions:

• Mobile communication terminal

• Vehicle dispatcher communication

• Voice communication with handheld radios

• Dynamic network extension while trucks move through tunnels



Since haul trucks travel continuously between the surface and underground production areas, they naturally extend communication coverage during daily operations.

This approach significantly improves communication flexibility without increasing infrastructure investment.

5. Handheld LoRa Radios

Mining personnel carry Kanglong handheld LoRa radios during daily operations.

Typical users include:

• Mine supervisors

• Excavator operators

• Maintenance engineers

• Electricians

• Blasting teams

• Safety inspectors



Workers remain connected with:

• Nearby vehicles

• Relay stations

• Surface dispatchers

• Emergency response teams



Even in curved tunnels where direct line-of-sight communication is impossible, relay stations maintain stable connectivity.





Typical Communication Workflow

1. A worker inside the production chamber contacts the dispatch center.

2. The handheld radio transmits the signal to the nearest D6000 repeater.

3. The repeater forwards the signal through successive relay stations.

4. The signal reaches the surface base station.

5. The base station delivers the communication to the control room.

6. The dispatcher can immediately contact:

• Underground workers

• Vehicle-mounted radios

• Maintenance personnel

• Emergency teams



The communication path remains stable even when vehicles are moving through the mine.



Advantages of the Kanglong LoRa Solution

Long Communication Distance

By combining LoRa technology with optimized repeater deployment, the system covers long underground haulage routes with excellent signal stability.

Excellent Tunnel Penetration

LoRa's narrowband transmission provides better diffraction and penetration than many conventional wireless systems, making it well suited for curved underground tunnels.

Flexible Expansion

As mining operations advance, additional relay stations can be installed without redesigning the entire communication network.

This significantly reduces future expansion costs.

Low Installation Cost

Compared with fiber optic or Wi-Fi infrastructure, the LoRa solution requires:

• Fewer cables

• Minimal civil engineering

• Shorter installation time

• Lower maintenance costs

Reliable Communication

Each repeater automatically forwards messages through multiple hops.

If one section of the mine expands, the network can be extended simply by adding additional relay nodes.

Low Power Consumption

LoRa devices consume very little power.

Solar-powered surface stations and low-energy relay equipment reduce operating costs while supporting continuous operation.



Application Scenarios

The solution is ideal for:

• Underground metal mines

• Gold mines

• Copper mines

• Iron ore mines

• Coal mines

• Limestone mines

• Tunnel excavation projects

• Hydropower tunnels

• Large underground construction sites



Why Choose Kanglong?

Kanglong specializes in professional wireless communication solutions for industrial environments.

Our LoRa mining communication system offers:

• Customized network design based on mine layouts

• Vehicle-mounted communication integration

• Flexible relay deployment

• Long-distance wireless networking

• OEM & ODM support

• Professional engineering assistance

• Global technical support



Whether your mine is a newly developed site or an expanding underground operation, Kanglong can design a communication solution tailored to your tunnel structure, production workflow, and coverage requirements.



Conclusion

Reliable communication is essential for modern underground mining. A poorly designed communication system can lead to production delays, safety risks, and increased operating costs.

Kanglong's LoRa Mine Communication Solution provides a practical and cost-effective alternative to traditional wired or cellular systems. By combining solar-powered base stations, intelligent LoRa repeaters, D6000E vehicle-mounted radios, and handheld terminals, the solution delivers dependable voice communication across long, winding underground haulage tunnels while remaining easy to expand as mining operations grow.

If you're planning a new underground mining project or upgrading an existing communication system, Kanglong can help you build a reliable, scalable, and economical LoRa network designed for the realities of underground operations.



FAQ

Q1: How far can the LoRa communication system cover underground?
Coverage depends on tunnel geometry and relay placement. With properly positioned D6000 repeaters, the system can reliably support communication across several kilometers of underground haulage tunnels.



Q2: Can the system work without cellular or Wi-Fi networks?
Yes. The solution operates independently of public cellular infrastructure and does not require underground Wi-Fi coverage.



Q3: Why install the D6000E on haul trucks?
Haul trucks travel throughout the mine every day. Installing the D6000E on these vehicles enables continuous communication with drivers and nearby workers while supporting flexible network coverage in active production areas.



Q4: Is the system easy to expand as the mine grows?
Yes. New relay stations can be added along newly excavated tunnels without replacing the existing network, making the solution highly scalable for expanding mining operations.



Q5: Can Kanglong provide customized OEM or ODM mining communication solutions?
Absolutely. Kanglong offers customized LoRa communication systems, including handheld radios, vehicle-mounted radios, repeaters, and complete network planning to meet the specific requirements of different underground mines.
