20W Long Range Repeater

The D6000 is a powerful 20W long-range repeater that builds automatic mesh networks with 30-level signal jumping for total coverage in no-signal zones.

Item No :
D6000
Payment :
T/T, L/C, PayPal, Western Union
HS CODE :
851762
Shipping Port :
Xiamen Port, China
Lead Time :
7-14 working days (Negotiable)
Order(MOQ) :
2 Sets (Sample order supported)

Product Details

D6000 20W Long Range Repeater

The D6000 is a high-power 20W stationary repeater designed to be the backbone of your network. Featuring automatic ad-hoc networking and 30-level signal jumping, it eliminates dead zones by providing a stable, long-distance connection via AC 100-240V external power.

Key Features & Functional Advantages

20W High-Power Output: Delivers a massive signal boost to cover vast distances and penetrate the toughest obstacles like thick concrete and deep earth.
Automatic Smart Networking: No complex setup required. The D6000 features automatic transfer and networking, making it easy to build a reliable communication backbone.

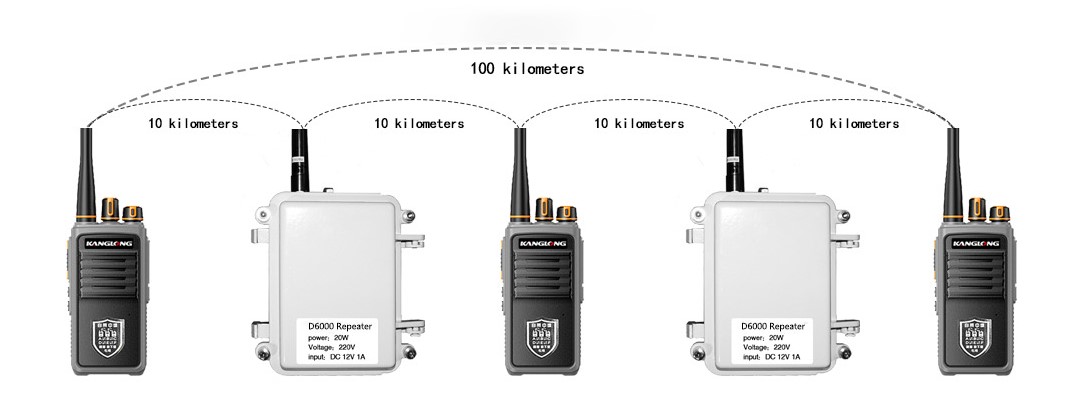

30-Level Connection: Supports level 30 and above signal jumping, allowing you to extend your network further than ever before through multiple "hops."
Continuous Power Supply: Designed for stationary use with a wide voltage input (AC 100-240V). Simply plug it into a standard outlet for 24/7 reliable operation.
Ideal for Large Sites: The perfect choice for providing full-site connectivity in tunnels, mines, massive farms, and multi-story parking structures.
System Backbone: Works seamlessly with our handheld radios to create a professional, long-range ad-hoc mesh network from the original source factory.

walkie talkie repeater

Typical Applications

Farms & Ranches (Outdoor Mounting)
Scene: Installed on top of a warehouse or barn roof.
Description: "Maximize your agricultural reach. Mount the D6000 high on a farm warehouse to create a massive signal bubble. This setup ensures your D750 handhelds stay connected across thousands of acres of open ranch land.
Mining & Tunnels (Entrance Placement)
Scene: Fixed at the cave entrance or tunnel mouth.
Description: "Perfect for underground mining and tunneling. By placing the D6000 at the tunnel entrance, it acts as a gateway, pushing the signal deep into the earth. The D750 radios use this backbone to maintain a lifeline to the surface.
Forestry & Remote Areas (Off-Grid Setup)
Scene: Mounted on a high tree or hilltop tower.
Description: Conquer the deep woods. Fix the D6000 to a high tree or vantage point to bypass hilly terrain and dense leaves. It provides a constant off-grid signal for rangers and logging crews using the D750 system.
Parking Lots & Basements (Wall Installation)
Scene: Wall-mounted in multi-story concrete structures.
Description: "Solve basement 'dead zones' instantly. Install the D6000 on a parking garage wall and connect it to a power source. It punches through reinforced concrete, providing seamless floor-to-floor communication for security teams.

Technical Highlights

Frequency Range: 400-480MHz
Channel Capacity: 16 Channels
Networking: 30-Level Relay Support

SPECIFICATION

Frequency Range	400-480MHz
Supply Power	DC220V
Operation Temperature	-20°C to +60°C
Frequency Engender	Phase-locked loop frequency synthesis
Memory Channel	16
Antenna	Rubber antenna
Antenna Impedance	50Ω
Work Mode	Same frequency simplex or different frequency simplex
Ground Method	Negative pole
Dimension	180x200x100mm
Weight	3kg
TRANSMITTER
Output Power	20W
Modulation Mode	FM(F3E)
Max Frequency Deviation	≤5KHz
Sparious Radiation	＜-60dB
Preemphasis Character	6dB
Emission Current	External Power Supply
RECEIVER
Sensitivity	<16uv(12dB SINAD)
Squeich Sensitivity	≤0.2uV
Intermodulation Rejection	50dB
Audio Power	1W
Receiving Current	≤100mW
Standby Current	≤20mA

*Specifications subject to change without notice due to continuous technical improvements.

FAQs

1. Are you a manufacturer or a trading company?
We are a professional walkie talkie factory in Quanzhou with 20+ years of experience. Our 10,000㎡ factory features 8 automated production lines.

2. Can I customize my own logo on the radios?
Yes, we are OEM/ODM experts. We offer custom branding with an MOQ as low as 100 units.

3. Do your products have international certifications?
Yes, all our radios are CE, FCC, and RoHS certified for global market compliance. We are also an ISO 9001 certified facility.

4. How do you guarantee product quality?
Every unit is tested in our on-site lab before shipment. We provide a 1-year manufacturer warranty on all devices.

5. What is the maximum communication range?
Our high-power models offer a long-range of up to 10km, ideal for construction, security, and logistics.

6. Are these radios compatible with Motorola or other brands?
Yes, our Digital (DMR) and Analog models can be programmed to be compatible with Motorola and other major brands using the same frequencies.

7. How fast is your delivery?
Samples are ready in 5-15 days. Bulk order lead times are usually less than 15 days due to our strong supply chain.

8. Are the radios waterproof for outdoor use?
Yes, we offer IP67 waterproof and dustproof models built specifically for harsh outdoor environments.

9. Can you provide smart radio systems with GPS?
Yes, we offer PoC and Digital radios with optional GPS SOS, WIFI and Bluetooth for real-time tracking.

10. Where is your factory located, and which airport or train station is the closest?
Our factory, KANGLONG RADIO, is located at 102, Bldg 11, 23 Chuangzao Ave, Xiamei, Quanzhou, Fujian, 362302, China. For your visit, the closest transit points are: Quanzhou Jinjiang International Airport (JJN) or Quanzhou Railway Station.
