8W IP68 Long Range Ad-hoc Mesh Network Handheld Radio

The D-750 Ad-hoc Mesh Radio features a 30-level continuous jump transfer function to extend communication range, providing a reliable 8W high-power signal and IP68 waterproof protection for seamless connectivity in complex tunnel or basement environments.

Item No :
D750
Payment :
T/T, L/C, PayPal, Western Union
HS CODE :
8517142000
Shipping Port :
Xiamen Port, China
Lead Time :
7-14 working days (Negotiable)
Order(MOQ) :
2 Sets (Sample order supported)

Product Details

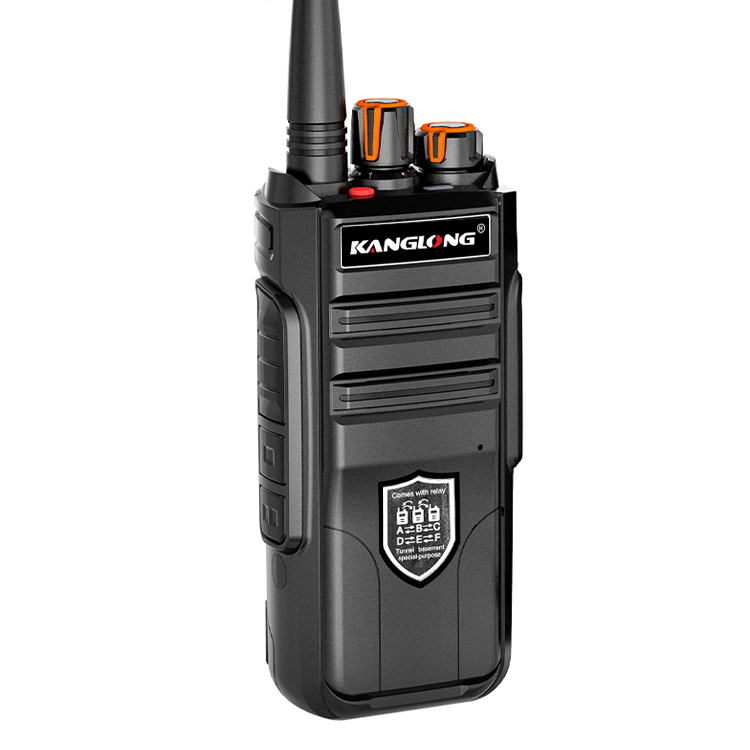

D-750 8W IP68 Ad-hoc Mesh Handheld Radio

The D-750 Ad-hoc Mesh Radio is a professional-grade communication solution engineered for extreme environments. Combining 8W high output power with advanced Self-organizing Mesh Networking, it ensures seamless connectivity where traditional radios fail. With its IP68 waterproof rating and 30-level continuous jump transfer function, the D-750 is the ultimate tool for long-range, multi-level signal relay.

Key Features & Functional Advantages

Advanced Ad-hoc Mesh Technology: Features Automatic Networking and Multi-level Connection capabilities. The 30-level jump transfer allows signals to bypass obstacles, significantly extending the communication range across complex terrains.

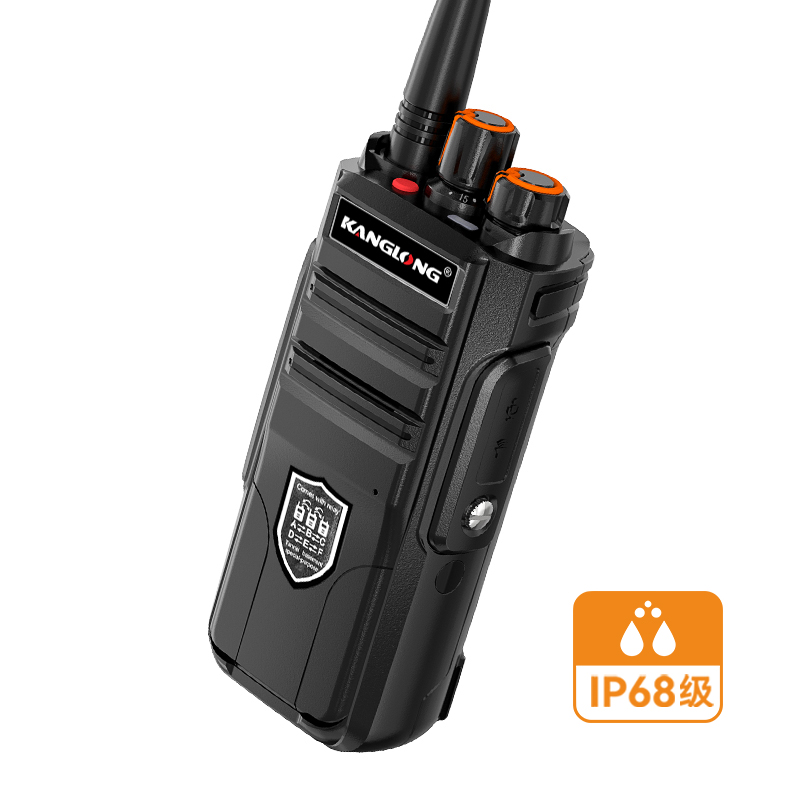

Rugged IP68 Waterproof Design: Fully dust-tight and submersible, this Rugged Handheld Radio is built to perform in heavy rain, maritime environments, and dusty industrial sites.
High-Power Performance: The 8W Power Output provides superior wall penetration and clear audio, ensuring critical messages are heard in high-interference zones.
Efficient Power Management: Equipped with a modern Type-C Charging port for rapid deployment and compatible with high-capacity batteries for extended operational shifts.
Automatic Transfer Machine: Acts as a portable repeater, automatically relaying signals to broaden the network coverage without manual configuration.

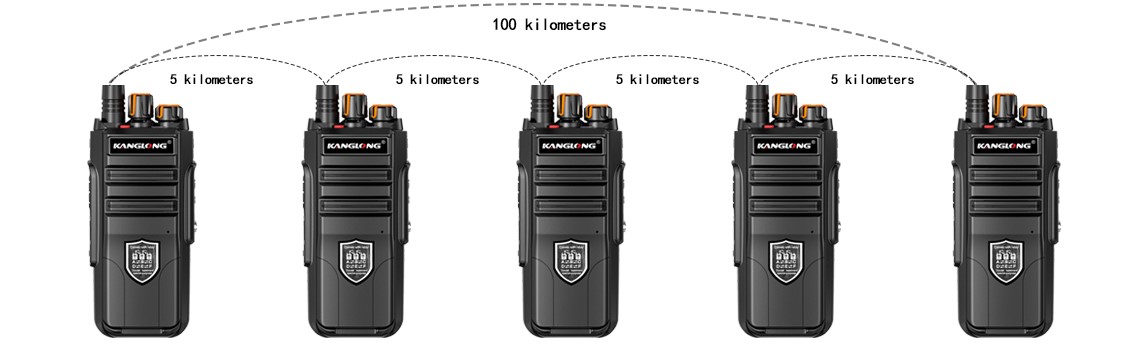

D-750 8W Mesh Radio

Typical Applications

Tunnel & Underground Construction

Scene: Working deep underground with thick concrete walls.

Pitch: Our LoRa tech punches through heavy walls where cell phones die, keeping the surface and tunnel teams connected.

Forestry

Scene: Deep in the woods with dense trees and no bars.

Pitch: Perfect for rangers. It hits long distances through thick leaves and hills without needing a cell tower.

Farms

Scene: Huge open fields and massive ranch lands.

Pitch: Keep in touch with workers across miles of farmland. The battery lasts forever, so you're never out of reach in the fields.

Parking Lots

Scene: Big concrete garages with multiple floors.
Pitch: Great for security. It talks through floors and car interference easily to keep the team moving.

long range wireless communication use cases

Product Video:

Technical Highlights

Frequency Range: 400-480MHz
Channel Capacity: 16 Channels
Charging: Type-C Charge
Protection: IP68 Certified
Networking: 30-Level Relay Support

SPECIFICATION

Frequency Range	400-480MHz
Supply Power	DC7.4V
Operation Temperature	-20°C to +60°C
Frequency Engender	Phase-locked loop frequency synthesis
Memory Channel	16
Antenna	Rubber antenna
Antenna Impedance	50Ω
Work Mode	Same frequency simplex or different frequency simplex
Ground Method	Negative pole
Dimension	59x39x110mm
Weight	255g
TRANSMITTER
Output Power	8W
Modulation Mode	FM(F3E)
Max Frequency Deviation	≤5KHz
Sparious Radiation	＜-60dB
Preemphasis Character	6dB
Emission Current	2200/2800mA(Customized)
RECEIVER
Sensitivity	<16uv(12dB SINAD)
Squeich Sensitivity	≤0.2uV
Intermodulation Rejection	50dB
Audio Power	1W

*Specifications subject to change without notice due to continuous technical improvements.

FAQs

1. Are you a manufacturer or a trading company?
We are a professional walkie talkie factory in Quanzhou with 20+ years of experience. Our 10,000㎡ factory features 8 automated production lines.

2. Can I customize my own logo on the radios?
Yes, we are OEM/ODM experts. We offer custom branding with an MOQ as low as 100 units.

3. Do your products have international certifications?
Yes, all our radios are CE, FCC, and RoHS certified for global market compliance. We are also an ISO 9001 certified facility.

4. How do you guarantee product quality?
Every unit is tested in our on-site lab before shipment. We provide a 1-year manufacturer warranty on all devices.

5. What is the maximum communication range?
Our high-power models offer a long-range of up to 10km, ideal for construction, security, and logistics.

6. Are these radios compatible with Motorola or other brands?
Yes, our Digital (DMR) and Analog models can be programmed to be compatible with Motorola and other major brands using the same frequencies.

7. How fast is your delivery?
Samples are ready in 5-15 days. Bulk order lead times are usually less than 15 days due to our strong supply chain.

8. Are the radios waterproof for outdoor use?
Yes, we offer IP67 waterproof and dustproof models built specifically for harsh outdoor environments.

9. Can you provide smart radio systems with GPS?
Yes, we offer PoC and Digital radios with optional GPS SOS, WIFI and Bluetooth for real-time tracking.

10. Where is your factory located, and which airport or train station is the closest?
Our factory, KANGLONG RADIO, is located at 102, Bldg 11, 23 Chuangzao Ave, Xiamei, Quanzhou, Fujian, 362302, China. For your visit, the closest transit points are: Quanzhou Jinjiang International Airport (JJN) or Quanzhou Railway Station.
