CASE STUDY | 50km Across the Desert: KANGLONG’s Communication Lifeline for Wind Farm Construction



1. Project Background & Pain Points



Building a wind farm in the middle of a vast desert is a massive undertaking where communication is everything. Our client faced three major "deadly" challenges:

  • Signal Dead Zones: The site was so huge that standard cell signals were non-existent. It was a total communication "island."

  • Coordination Gaps: Complex tasks like crane lifting and equipment testing required constant, real-time back-and-forth.

  • Safety Risks: In a harsh desert with extreme heat and sandstorms, we needed to know where everyone was and ensure they could call for help instantly.

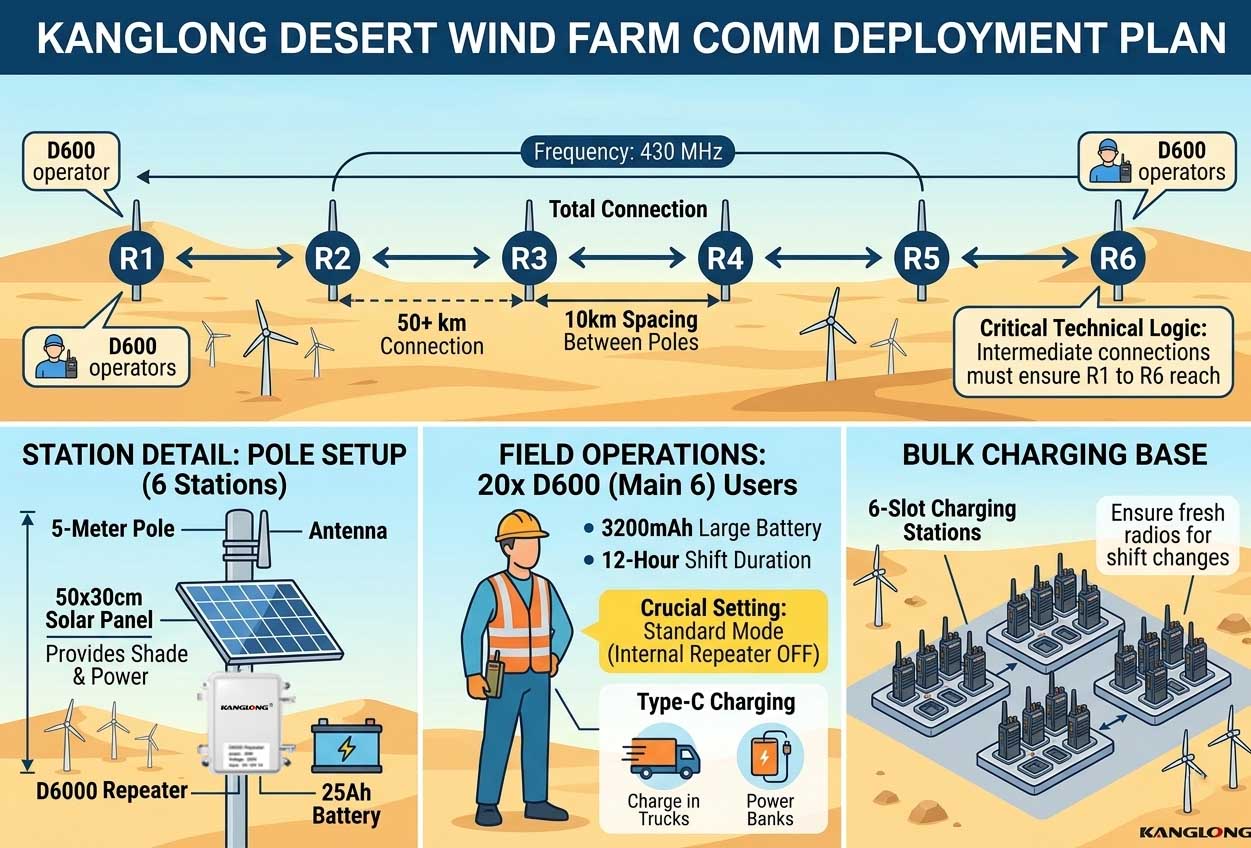

2. The Solution: D6000 Relay System + D600 Handhelds



To solve this, the KANGLONG team designed a custom "daisy-chain" long-range solution:

  • The Hubs: 6 units of D6000 High-Power Repeaters.

  • The Gear: 20 units of D600 Heavy-Duty Handheld Radios.

  • Frequency: 430MHz (chosen for its excellent penetration and stability over long distances).



3. Smart "Off-Grid" Power & Deployment



Since there was zero infrastructure, we worked with the client’s electrical team to build a self-sufficient power setup for each relay point:

  • The Setup: Each D6000 repeater was paired with a 50×30cm solar panel, a 25Ah battery, and a 5-meter pole.

  • Strategic Placement: We put the solar panel and antenna at the very top (5m high) for the best signal.

  • Natural Cooling: We placed the D6000 and the battery directly under the solar panel. The panel didn't just provide power—it acted as a sunshade to keep the equipment from overheating in the desert sun.

  • Spacing: We spaced the poles every 10km (adjusted slightly for terrain) to create a seamless signal blanket.





4. The Technical Challenge: The Chain Link



The "make or break" part of this system was ensuring the D6000s could talk to each other. To hit that 50km+ range, we had to ensure a perfect hand-off from R1 to R2, R2 to R3, and so on, all the way to R6.

  • Pro Tip: For the D600 handhelds, we recommended turning off the internal repeater mode. In this specific setup, staying in "Standard Mode" provided much clearer audio and better overall performance within the D6000 network.



5. Keeping the Team Charged



To handle 12-hour shifts in the heat, we focused on "no-fail" charging:

  • Big Battery: The D600 comes with a 3200mAh battery, which easily lasts an entire 12-hour shift.

  • Charge Anywhere: Since the D600 supports Type-C charging, workers could top up in their trucks or via power banks.

  • Bulk Charging: We provided four 6-slot charging stations so the crew could swap out fresh radios during shift changes without any downtime.



6. The Result



The system ran like a charm. Every department stayed connected, and the wind farm construction was completed right on schedule.

The Bottom Line: At KANGLONG RADIO, we love a good challenge. This project wasn’t just about selling radios; it was about building a custom solution that worked when it mattered most. Seeing the project succeed gives us a huge sense of achievement.
