Outdoor IP68 Dual Mode 4G PoC 5W Analog Walkie Talkie

The KANGLONG PG-60 is a versatile Dual Mode PoC Radio that seamlessly combines 4G public network communication with traditional VHF/UHF analog frequencies.

Item No :
PG-60
Payment :
T/T, L/C, PayPal, Western Union
HS CODE :
851742
Shipping Port :
Xiamen Port, China
Lead Time :
7-14 working days (Negotiable)
Order(MOQ) :
2 Sets (Sample order supported)

Product Details

PG-60 Outdoor IP68 Dual Mode 4G PoC 5W Analog Walkie Talkie

The PG-60 is a professional-grade Dual Mode Radio engineered for mission-critical reliability. By integrating 4G LTE PoC (Push-to-Talk over Cellular) with Standard Analog (VHF/UHF), it offers the ultimate communication backup—use the 4G network for unlimited global range and switch to Analog mode for direct point-to-point communication where network coverage is unavailable.

Featuring a rugged IP68 waterproof housing and a Dual PTT button design, the PG-60 allows users to manage two different communication modes simultaneously. With FOTA aerial upgrades, Dual SIM support, and Frequency Cloning capabilities, it is the most adaptable tool for modern fleets and security teams requiring hybrid connectivity.

Key Features & Functional Advantages

Four Working Modes: Supports Public Network (PoC), Analog, Hybrid, and Repeater modes for maximum flexibility.

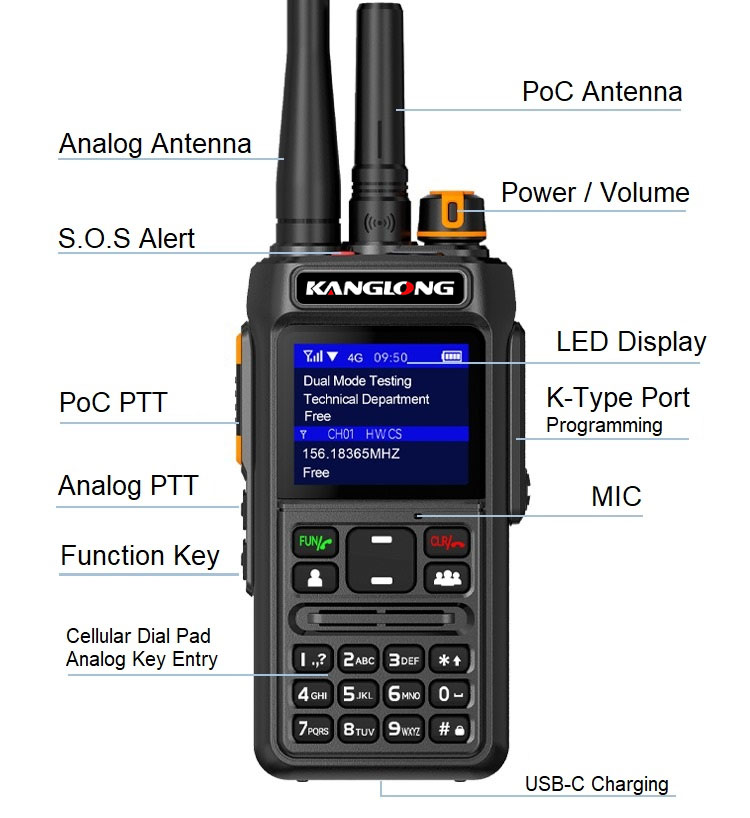

Dual PTT Design: Dedicated PTT buttons for instant switching between 4G and Analog transmission.
IP68 Ruggedized: Fully waterproof and dustproof for performance in extreme outdoor environments.
Frequency Cloning: Easily sync analog frequencies and channels without complex programming.
FOTA Aerial Upgrade: Supports remote firmware and software updates via cloud (Firmware Over-The-Air).
Global Band Support: Specialized versions for North America, Europe, Asia, and Latin America.

Typical Applications

Emergency Services: Reliable hybrid communication in disaster zones where cellular towers may be down.
Construction & Mining: Uses analog for on-site underground work and 4G for city-wide logistics.
Forestry & Exploration: Vital for remote areas requiring VHF/UHF direct-talk backup.
Event Management: 4G for broad team coordination and Analog for short-range security teams.
Port & Maritime: Rugged IP68 design handles saltwater and heavy rain in global shipping hubs.

Technical Highlights

Talking Range: Over 5000 km
Network: 4G LTE (FDD/TDD) & GSM
USB Type-C
GPS Optional
IP68

SPECIFICATION

Network standard	SE36NA - North American Bands:
	FDD: B2(25)/4/5(26)/12(17)/13/71
	TDD:B41
	SE36A - Latin American Bands:
	FDD: B1/B2/B3/B4/B5/B7/B8/B20/B66
	FDD: B1, B3, B5, B7, B8, B20, B28
	SE36U - European Band:
	FDD: B1, B3, B5, B7, B8, B20, B28
	TDD:B34, B38, B39, B40, B41
	GSM: 850/900/1800/1900MHz
	SE36M - Asian Band:
	FDD: B1, B3, B5, B8
	TDD:B34, B38, B39.B40.B41
Analog Parameters
Frequency range	400-470MHz/136-174MHz
Number of channels	16
Receiving sensitivity	0.2 uV 12dB SINAD
Transmission power	High:5W Low:2W
Other parameters
Audio power	1.5W
Working temperature	-20°C~+60°C
Voltage/Capacity	7.4V/2200mAh
Screen size	1.77 inches
External dimensions	1106044mm (Without antenna)
Whole machine weight	308g(Including battery)

*Specifications subject to change without notice due to continuous technical improvements.

FAQs

1. Are you a manufacturer or a trading company?
We are a professional walkie talkie factory in Quanzhou with 20+ years of experience. Our 10,000㎡ factory features 8 automated production lines.

2. Can I customize my own logo on the radios?
Yes, we are OEM/ODM experts. We offer custom branding with an MOQ as low as 100 units.

3. Do your products have international certifications?
Yes, all our radios are CE, FCC, and RoHS certified for global market compliance. We are also an ISO 9001 certified facility.

4. How do you guarantee product quality?
Every unit is tested in our on-site lab before shipment. We provide a 1-year manufacturer warranty on all devices.

5. What is the maximum communication range?
Our high-power models offer a long-range of up to 10km, ideal for construction, security, and logistics.

6. Are these radios compatible with Motorola or other brands?
Yes, our Digital (DMR) and Analog models can be programmed to be compatible with Motorola and other major brands using the same frequencies.

7. How fast is your delivery?
Samples are ready in 5-15 days. Bulk order lead times are usually less than 15 days due to our strong supply chain.

8. Are the radios waterproof for outdoor use?
Yes, we offer IP67 waterproof and dustproof models built specifically for harsh outdoor environments.

9. Can you provide smart radio systems with GPS?
Yes, we offer PoC and Digital radios with optional GPS SOS, WIFI and Bluetooth for real-time tracking.

10. Where is your factory located, and which airport or train station is the closest?
Our factory, KANGLONG RADIO, is located at 102, Bldg 11, 23 Chuangzao Ave, Xiamei, Quanzhou, Fujian, 362302, China. For your visit, the closest transit points are: Quanzhou Jinjiang International Airport (JJN) or Quanzhou Railway Station.
