10W IP68 Rugged Air Band Amateur Ham Radio

The KANGLONG UV-68 is a 10W powerhouse featuring Air Band reception, 512 memory channels, and integrated GPS for elite amateur radio operators.

Item No :
UV-68
Payment :
T/T, L/C, PayPal, Western Union
HS CODE :
851742
Shipping Port :
Xiamen Port, China
Lead Time :
7-14 working days (Negotiable)
Order(MOQ) :
2 Sets (Sample order supported)

Product Details

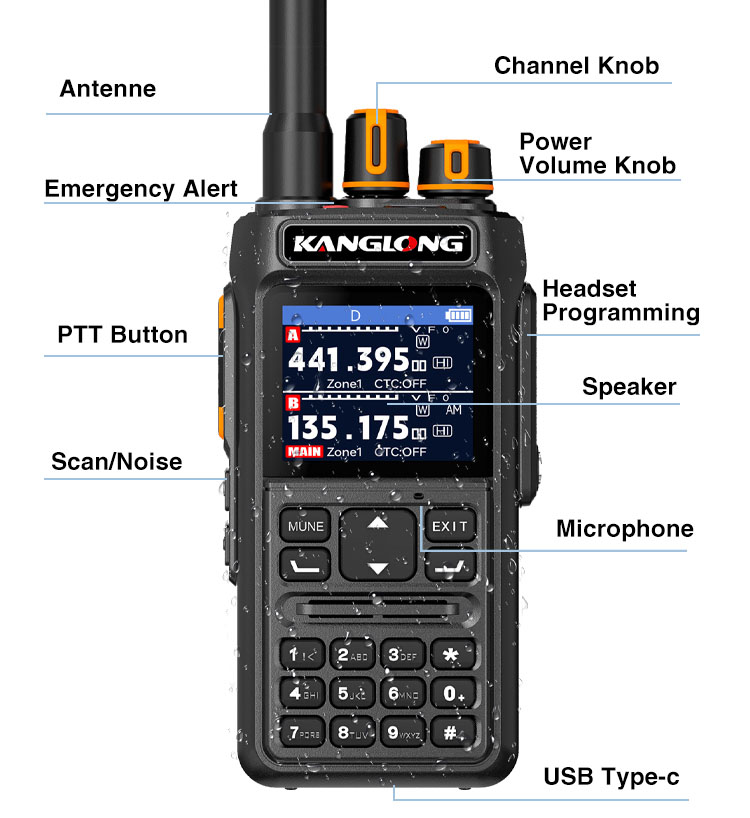

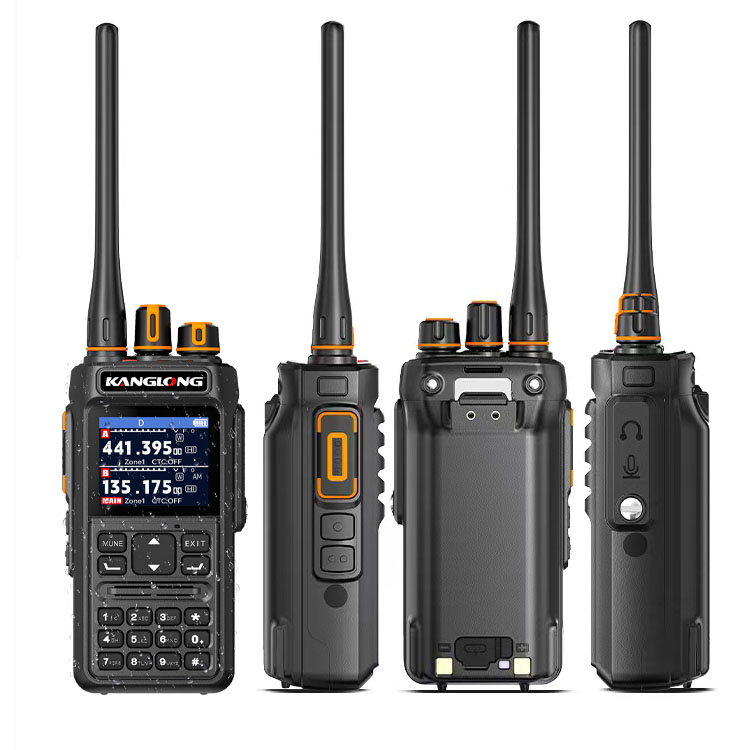

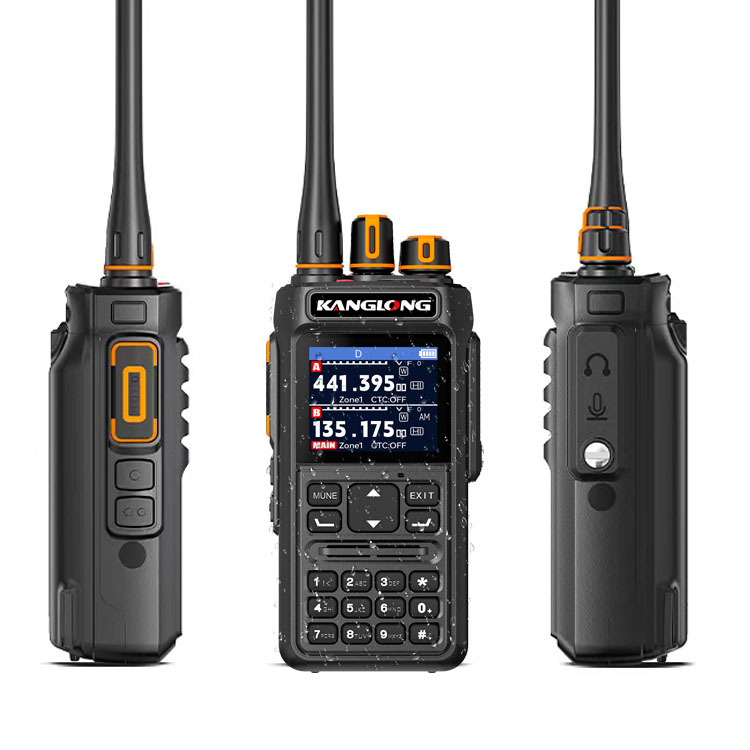

UV-68 10W IP68 Rugged Air Band Amateur Ham Radio

If you're serious about your gear, the UV-68 is the definitive "all-in-one" tool for your kit. We've combined a staggering 10W of RF output with an IP68 waterproof rating, making it a "go-anywhere" radio that punches through interference where others fail. This isn't just a standard dual-bander; we've integrated Air Band reception so you can monitor civil aviation frequencies alongside your standard ham bands.

With 512 channels at your disposal, you can map out every local repeater, emergency service, and simplex frequency without breaking a sweat. For field safety, the built-in GPS and SOS button provide real-time location data and a dedicated emergency lifeline. It’s the ultimate high-performance terminal for the modern ham enthusiast who demands power, precision, and durability.

Key Features & Functional Advantages

Dual Frequency Receiver: Stay on top of two channels at once with a high-contrast double display.
Fast Frequency Cloning: Wirelessly sync frequencies and sub-tones from nearby radios—no PC required.
5W Reliable Output: Optimized power consumption for the best balance between range and battery life.
Professional FM Radio: High-fidelity FM broadcast reception for news and weather updates during downtime.
Integrated Stopwatch: A unique built-in timer feature for search-and-rescue or race coordination.Precision
Squelch Control: Fine-tuned sensitivity (0.2uV) to pull weak signals out of the noise.

Typical Applications

10W Super Penetration: Maximum output power ensures your signal reaches the furthest repeaters in difficult terrain.
Aviation Air Band: Full reception for civil aviation frequencies, expanding your monitoring capabilities.
512 Memory Channels: Massive storage capacity for complex frequency lists and massive repeater networks.
GPS & SOS Integration: Real-time satellite positioning and a one-touch emergency alert system.
IP68 Certified: Fully submersible and dust-tight; engineered for the harshest outdoor environments.
Type-C Charging: Modern, convenient charging compatible with power banks and vehicle adapters.

Technical Highlights

Power: 10W
USB Type-C
IP68
GPS,SOS Optional
512CH

SPECIFICATION

Frequency Range	137-174/350-390/400-480MHz
Supply Power	DC 7.4V
Operation Temperature	-20°C3+60°C
Frequency Engender	Phase-locked loop frequency synthesis
Memory Channel	512
Antenna	Rubber antenna
Antenna Impedance	50Ω
Work Mode	Same frequency simplex or different frequency simplex
Ground Method	Negative pole
Dimension	1105634mm
Weight	160g
TRANSMITTER
Output Power	10W
Modulation Mode	FM(F3E)
Max,Frequency Deviation	≤5KHz
Sparious Radiation	<-60 dB
Preemphasis Character	6dB
Emission Current	2000mAH
RECEIVER
Sensitivity	<16uv(12dB SINAD)
Squelch Sensitivity	≤0.2uV
Intermodulation Rejection	50dB
Audio Power	1W
Receiving Current	≤100mW
Standby Current	≤20mA

*Specifications subject to change without notice due to continuous technical improvements.

FAQs

1. Are you a manufacturer or a trading company?
We are a professional walkie talkie factory in Quanzhou with 20+ years of experience. Our 10,000㎡ factory features 8 automated production lines.

2. Can I customize my own logo on the radios?
Yes, we are OEM/ODM experts. We offer custom branding with an MOQ as low as 100 units.

3. Do your products have international certifications?
Yes, all our radios are CE, FCC, and RoHS certified for global market compliance. We are also an ISO 9001 certified facility.

4. How do you guarantee product quality?
Every unit is tested in our on-site lab before shipment. We provide a 1-year manufacturer warranty on all devices.

5. What is the maximum communication range?
Our high-power models offer a long-range of up to 10km, ideal for construction, security, and logistics.

6. Are these radios compatible with Motorola or other brands?
Yes, our Digital (DMR) and Analog models can be programmed to be compatible with Motorola and other major brands using the same frequencies.

7. How fast is your delivery?
Samples are ready in 5-15 days. Bulk order lead times are usually less than 15 days due to our strong supply chain.

8. Are the radios waterproof for outdoor use?
Yes, we offer IP67 waterproof and dustproof models built specifically for harsh outdoor environments.

9. Can you provide smart radio systems with GPS?
Yes, we offer PoC and Digital radios with optional GPS SOS, WIFI and Bluetooth for real-time tracking.

10. Where is your factory located, and which airport or train station is the closest?
Our factory, KANGLONG RADIO, is located at 102, Bldg 11, 23 Chuangzao Ave, Xiamei, Quanzhou, Fujian, 362302, China. For your visit, the closest transit points are: Quanzhou Jinjiang International Airport (JJN) or Quanzhou Railway Station.
