10W Dual Band DMR Digital Walkie-Talkie

Experience superior clarity and rugged reliability with the DM-900UV, a 10W dual-band DMR radio featuring IP68 waterproofing and 300-hour voice recording.

Item No :
DM900UV
Payment :
T/T, L/C, PayPal, Western Union
HS CODE :
851742
Shipping Port :
Xiamen Port, China
Lead Time :
7-14 working days (Negotiable)
Order(MOQ) :
2 Sets (Sample order supported)

Product Details

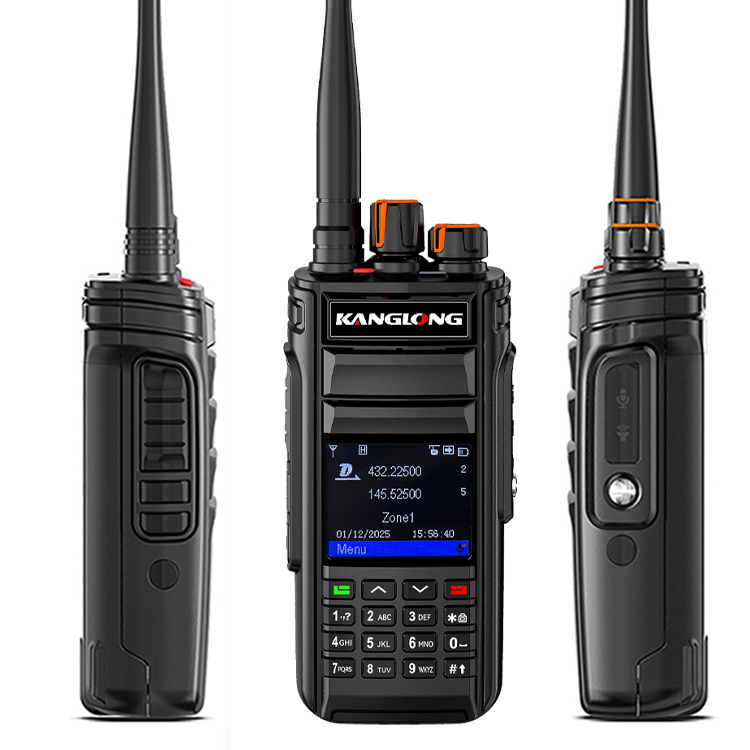

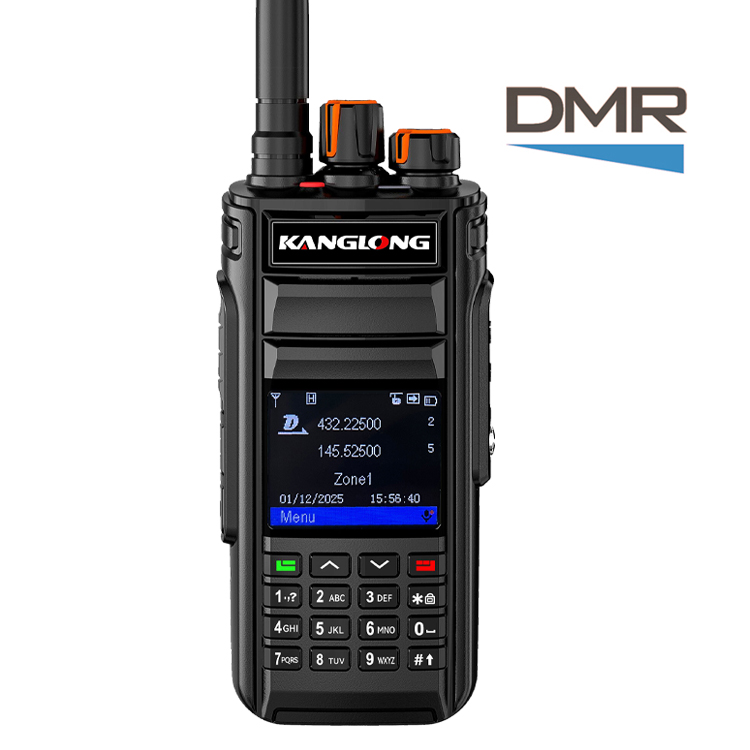

DM900UV 10W Dual Band DMR Digital Walkie-Talkie

The KANGLONG DM-900UV is a high-power dual-band digital radio designed for professionals who demand more. With a powerful 10W transmitter, it breaks through distance barriers that stop other radios. Its IP68 rating means it's ready for rain, mud, and dust, while the industry-leading 300-hour voice recording feature provides an essential safety net for audit trails and incident reporting. Supporting both digital and analog modes, it offers a crystal-clear AMBE+2TM voice experience and seamless compatibility with existing fleets.

Key Features & Functional Advantages

Dual Band / Dual Display: Monitor both VHF (136-174MHz) and UHF (400-470MHz) frequencies simultaneously.
Dual Capacity Direct Mode (DCDM): Allows two offset talk paths on one frequency for higher efficiency.
Advanced Encryption: Digital encryption ensures your conversations stay private and secure.
Large Capacity Storage: Supports 64 channels across 4 zones with 4 programmable side buttons.
Rugged Build: Firmware upgradeable design with a durable chassis and clear color display.
Safety Features: Lone Worker Mode, Emergency Alarm, and TOT (Time-out Timer) alerts.

Typical Applications

Dual Band / Dual Display: Monitor both VHF (136-174MHz) and UHF (400-470MHz) frequencies simultaneously.
Dual Capacity Direct Mode (DCDM): Allows two offset talk paths on one frequency for higher efficiency.
Advanced Encryption: Digital encryption ensures your conversations stay private and secure.
Large Capacity Storage: Supports 64 channels across 4 zones with 4 programmable side buttons.
Rugged Build: Firmware upgradeable design with a durable chassis and clear color display.
Safety Features: Lone Worker Mode, Emergency Alarm, and TOT (Time-out Timer) alerts.

Technical Highlights

Frequency Range: VHF&UHF
Channel Capacity: 64 Channels
Power: 10W Operating
IP68

SPECIFICATION

Digital Mode	Compliant with DMR Tier I & II
Analog Mode	Technical specifications for analog radios
Frequency Range	VHF 136-174MHz UHF 400-470MHz
Channel Capacity	64 (4 Zones)
Frequency Stability	+1ppm
Operating Temperature	-30°C~ +60°C
Operating Voltage	7.4V DC
Dimensions	139mm 59.5mm 36mm
Weight	325g
TRANSMITTER
Channel Spacing	12.5KHz
Frequency Stability	+1.5ppm
Transmit Power	High:10W Low:5W
FM Noise	-40dB@12.5KHz
Spurious Emissions	<-36dBm@1GHz
Adjacent Channel Power	>-30dBm@1GHz
FM Modulation	-60dB@12.5KHz
4FSK Digital Modulation Method	12.5KHz:11FOF3E
Modulation Limiting	112.5KHz(data onlv):7K60FXD 12.5KHz(data+voice):7K60FXED 12.5KHz@12.5K
Audio Response	+1dB--3dB
Rated Audio Distortion	≤3%
Digital Protocol	ETSITS102361-1,2
Digital Voice Codec	AMBE+2TM
RECEIVER
Analog Sensitivity	0.35uV/-116dBm(20dB SINAD) 0.22uV/-120dBm(typical)
Digital Sensitivity	0.3uV/-117.4dBm(BER 5%0.7uV/-110dBm(BER 1%
Channel Spacing	12.5KHZ
Frequency Stability	+1.0ppm
Intermodulation	TIA603C:65d B ETS1:65dB
Adjacent Channel Selectivity	TIA603C:60dB@12.5KHZETS1:60dB@12.5KHZ
Co-channel Rejection	12dB@12.5KHZ
Spurious Response Rejection	TIA603C: 70dB ETSI:70dB mailto:60dB@125.5KHz
Spurious Emissions	<-57dBm@1GHz>-47dBm@1GHz
Rated Audio Power Output	1w
Audio Response	+1dB~-3dB
Audio Distortion	≤3%

*Specifications subject to change without notice due to continuous technical improvements.

FAQs

1. Are you a manufacturer or a trading company?
We are a professional walkie talkie factory in Quanzhou with 20+ years of experience. Our 10,000㎡ factory features 8 automated production lines.

2. Can I customize my own logo on the radios?
Yes, we are OEM/ODM experts. We offer custom branding with an MOQ as low as 100 units.

3. Do your products have international certifications?
Yes, all our radios are CE, FCC, and RoHS certified for global market compliance. We are also an ISO 9001 certified facility.

4. How do you guarantee product quality?
Every unit is tested in our on-site lab before shipment. We provide a 1-year manufacturer warranty on all devices.

5. What is the maximum communication range?
Our high-power models offer a long-range of up to 10km, ideal for construction, security, and logistics.

6. Are these radios compatible with Motorola or other brands?
Yes, our Digital (DMR) and Analog models can be programmed to be compatible with Motorola and other major brands using the same frequencies.

7. How fast is your delivery?
Samples are ready in 5-15 days. Bulk order lead times are usually less than 15 days due to our strong supply chain.

8. Are the radios waterproof for outdoor use?
Yes, we offer IP67 waterproof and dustproof models built specifically for harsh outdoor environments.

9. Can you provide smart radio systems with GPS?
Yes, we offer PoC and Digital radios with optional GPS SOS, WIFI and Bluetooth for real-time tracking.

10. Where is your factory located, and which airport or train station is the closest?
Our factory, KANGLONG RADIO, is located at 102, Bldg 11, 23 Chuangzao Ave, Xiamei, Quanzhou, Fujian, 362302, China. For your visit, the closest transit points are: Quanzhou Jinjiang International Airport (JJN) or Quanzhou Railway Station.
