10W DMR Digital Walkie-Talkie

The KANGLONG DM-800 is a professional two-way radio featuring AES256 DMR encryption, 10W walkie talkie power, and same frequency relay radio technology in a rugged IP68 waterproof radio body.

  • Item No :

    DM800
  • Payment :

    T/T, L/C, PayPal, Western Union
  • HS CODE :

    851742
  • Shipping Port :

    Xiamen Port, China
  • Lead Time :

    7-14 working days (Negotiable)
  • Order(MOQ) :

    2 Sets (Sample order supported)

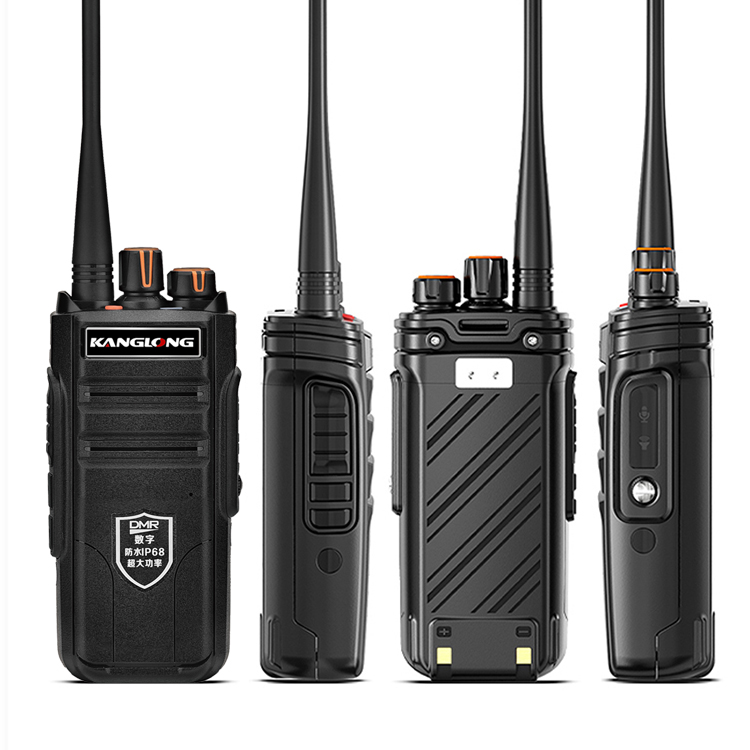

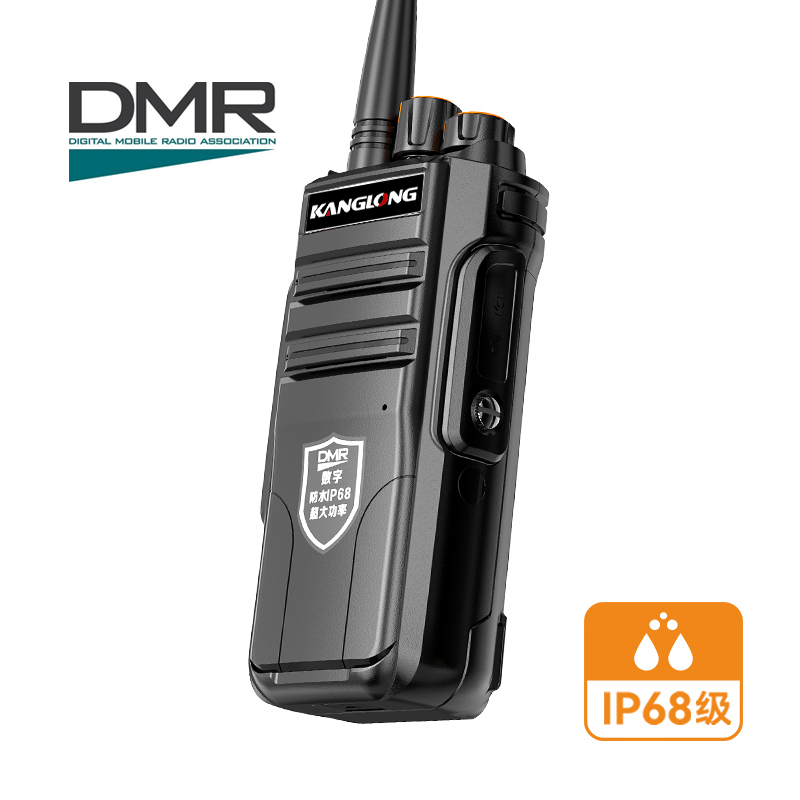

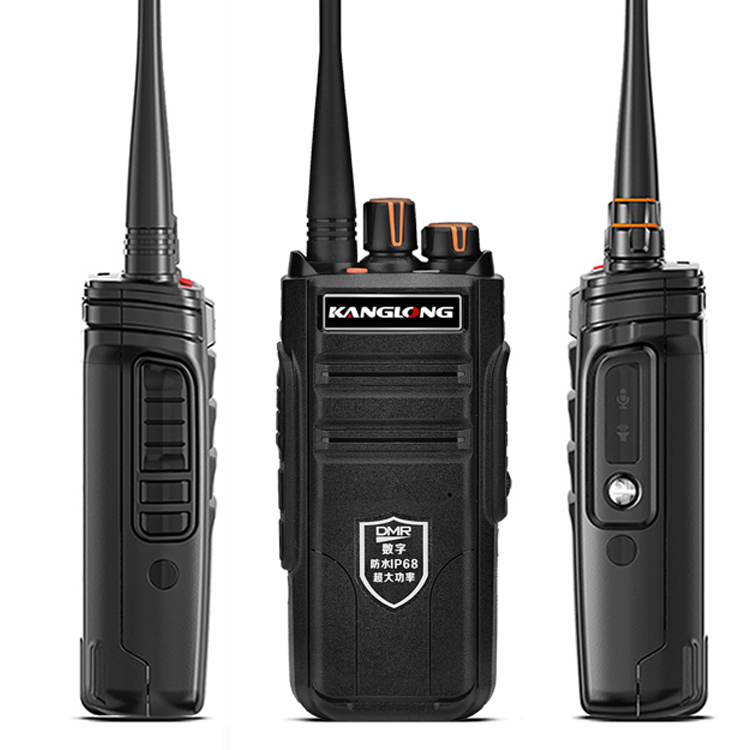

DM-800 10W DMR Digital Walkie-Talkie

Experience the next level of mission-critical communication with the KANGLONG DM-800. This secure digital walkie talkie is built for professionals, offering top-tier AES256 DMR encryption and a same frequency relay radio function to maximize network efficiency. As a high-performance long range DMR handheld, it delivers a massive 10W walkie talkie output, ensuring clear signals where others fail. Designed as a professional two-way radio, it features a modern Type-C digital radio charging port and an IP68 waterproof radio rating to withstand the toughest environments.

Key Features & Functional Advantages

  • Data Security: Integrated AES256 DMR keeps your voice and SMS data fully encrypted.
  • Network Efficiency: Same frequency relay radio technology doubles capacity without extra frequencies.
  • Maximum Range: 10W walkie talkie transmitter offers industry-leading long range DMR handheld distance.
  • All-Weather Ready: IP68 waterproof radio certified—dust-tight and fully submersible in water.
  • Modern Power: Type-C digital radio charging interface for fast and flexible power access anywhere.
  • Pro Features: A professional two-way radio supporting remote kill, stun, and emergency alerts.

Typical Applications

  • Public Safety & Tactical Operations

As a secure digital walkie talkie, the DM-800 provides the highest level of AES256 DMR encryption to prevent unauthorized eavesdropping. In high-stakes security missions, this professional two-way radio ensures absolute privacy. Even in remote areas without base stations, the same frequency relay radio function allows teams to establish a local communication network instantly.

  •  Heavy Industry & Mining

The IP68 waterproof radio rating makes this device immune to submersion and fine dust in deep mines. The massive 10W walkie talkie output penetrates thick metal structures and rock layers, serving as an essential long range DMR handheld for underground safety and logistics coordination.

  • Maritime & Port Logistics

In high-salt and high-humidity environments, the IP68 waterproof radio durability is unmatched. The same frequency relay radio feature effectively covers vast container terminals. With the Type-C digital radio port, operators can recharge via power banks, ensuring this professional two-way radio stays active during 24-hour shifts.

  • Large-Scale Construction & Basements

To overcome signal dead zones in high-rise buildings or multi-level basements, the DM-800 utilizes its 10W walkie talkie power for superior penetration. This long range DMR handheld manages up to 1024 channels, allowing the secure digital walkie talkie system to coordinate security, engineering, and management teams simultaneously.





Technical Highlights

  • Frequency Range: VHF/UHF
  • Channel Capacity: 1024 Channels
  • Power: 10W
  • IP68

SPECIFICATION

 Digital Mode Compliant with DMR Tier I & II
    Analog Mode Technical specifications for analog radios
  Frequency Range VHF 136-174MHz    UHF 400-470MHz
Channel Capacity 1024
Channel Gap 12.5kHz/25kHz/ 20kHz
Frequency Stability 2.5ppm
Antenna impedance 50Ω
Operating Temperature -30°C~ +60°C
Operating Voltage  7.4V DC
Dimensions 126mm *53mm *34mm
Weight 318g
TRANSMITTER
Channel Spacing 12.5KHz
Frequency Stability +1.5ppm
Transmit Power High:10W Low:5W
FM Noise -40dB@12.5KHz
Spurious Emissions <-36dBm@1GHz
Adjacent Channel Power >-30dBm@1GHz
FM Modulation -60dB@12.5KHz
4FSK Digital Modulation Method 12.5KHz:11FOF3E
Modulation Limiting 112.5KHz(data onlv):7K60FXD 12.5KHz(data+voice):7K60FXED 12.5KHz@12.5K
Audio Response +1dB--3dB
Rated Audio Distortion ≤3%
Digital Protocol ETSITS102361-1,2
Digital Voice Codec AMBE+2TM
RECEIVER
Analog Sensitivity 0.35uV/-116dBm(20dB SINAD) 0.22uV/-120dBm(typical)
Digital Sensitivity 0.3uV/-117.4dBm(BER 5%0.7uV/-110dBm(BER 1%
Channel Spacing 12.5KHZ
Frequency Stability

+1.0ppm

Intermodulation TIA603C:65d B ETS1:65dB
Adjacent Channel Selectivity TIA603C:60dB@12.5KHZETS1:60dB@12.5KHZ
Co-channel Rejection 12dB@12.5KHZ
Spurious Response Rejection TIA603C: 70dB ETSI:70dB mailto:60dB@125.5KHz
Spurious Emissions <-57dBm@1GHz>-47dBm@1GHz
Rated Audio Power Output 1.5w
Audio Response +1dB~-3dB
Audio Distortion ≤3%

*Specifications subject to change without notice due to continuous technical improvements.

FAQs

1. Are you a manufacturer or a trading company?
We are a professional walkie talkie factory in Quanzhou with 20+ years of experience. Our 10,000㎡ factory features 8 automated production lines.

2. Can I customize my own logo on the radios?
Yes, we are OEM/ODM experts. We offer custom branding with an MOQ as low as 100 units.

3. Do your products have international certifications?
Yes, all our radios are CE, FCC, and RoHS certified for global market compliance. We are also an ISO 9001 certified facility.

4. How do you guarantee product quality?
Every unit is tested in our on-site lab before shipment. We provide a 1-year manufacturer warranty on all devices.

5. What is the maximum communication range?
Our high-power models offer a long-range of up to 10km, ideal for construction, security, and logistics.

6. Are these radios compatible with Motorola or other brands?
Yes, our Digital (DMR) and Analog models can be programmed to be compatible with Motorola and other major brands using the same frequencies.

7. How fast is your delivery?
Samples are ready in 5-15 days. Bulk order lead times are usually less than 15 days due to our strong supply chain.

8. Are the radios waterproof for outdoor use?
Yes, we offer IP67 waterproof and dustproof models built specifically for harsh outdoor environments.

9. Can you provide smart radio systems with GPS?
Yes, we offer PoC and Digital radios with optional GPS SOS, WIFI and Bluetooth for real-time tracking.

10. Where is your factory located, and which airport or train station is the closest?
Our factory, KANGLONG RADIO, is located at 102, Bldg 11, 23 Chuangzao Ave, Xiamei, Quanzhou, Fujian, 362302, China. For your visit, the closest transit points are: Quanzhou Jinjiang International Airport (JJN) or Quanzhou Railway Station.
